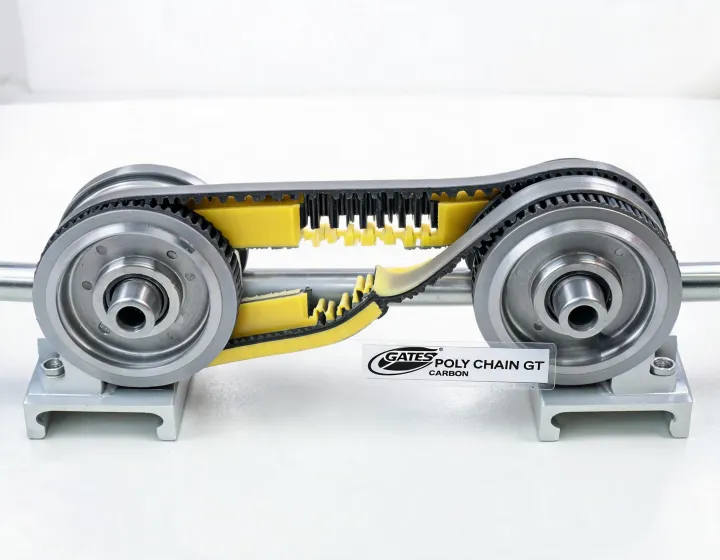

Poly Chain synchronous belt drive assembly

Poly Chain GT Carbon - ISO 5294 - DesignFlex Pro - 10,000 rpm

Gates belts selected by part number, pulley geometry and drive load.

Use a compact Gates belt catalog for synchronous timing belts, V-belts, Micro-V belts and high-load industrial belt drives. The site is organized for engineers who need quick cross-reference data, not broad marketing copy.

Open Product Catalog Download Resources

Specification checkpoints

Four compact groups keep selection tied to mechanical duty instead of guesswork.

Poly Chain GT Carbon: Carbon tensile cord, polyurethane body and high torque density for compact drives.
PowerGrip GT3: Curvilinear tooth profile for synchronous positioning and quiet industrial service.
Quad-Power V-belt: Wrapped and raw-edge V-belt choices for retrofit sheaves and high flex cycles.

Center distance: 72 mm to 3,200 mm entered with pulley tooth count, wrap angle and shaft speed.
Speed range: Low-speed indexing to 10,000 rpm continuous service, with guarding and tension checks.

Geometry: ISO 5294 pulley profile review and static tension window for each belt width.
Records: Serialized inspection records, lot traceability and installation torque guidance on request.

190+Countries served

10,000 rpmSelection envelope

ISO 5294Pulley geometry

24 hCatalog response

Engineering Downloads

STEP / DWG models, serialized datasheets, installation manuals and selection tools under one search path.

CAD

CAD Library

STEP / IGES / DWG pulley and belt drive models for layout checks in SolidWorks, Creo and Inventor.

1,240 files - updated weeklyOpen Library

PDF

Datasheets

Serialized belt spec sheets arranged by profile, pitch, width and allowable speed window.

3,800 files - ISO 5294 indexedDownload PDF

MAN

Manuals

Installation tension, alignment tolerance, pulley inspection and storage instructions for each family.

620 manuals - EN / DE / ES / ZHBrowse Manuals

CAT

Catalogs

Full family catalogs with selection tables, accessories, cross-reference notes and service factors.

12 catalogs - print or digitalRequest Print Catalog

Looking for legacy 1995-2010 documents? Archive request

Why engineers keep Gates in the approved list

DesignFlex Pro workflow

Selection starts with torque, rpm, center distance and service factor, then narrows belt width and pulley geometry.

Poly Chain GT Carbon density

Carbon tensile cord and polyurethane body help replace chain drives where lubrication, stretch and guard cleaning are problems.

V-belt retrofit coverage

Quad-Power, Micro-V and RPM belt lines cover common sheave envelopes without forcing a full drive redesign.

Catalog-by-size access

Part numbers, effective length, top width, pitch and cross-section are indexed for procurement teams and MRO stores.

Send a belt drive envelope for engineer review.

Include rpm, pulley teeth, center distance, load class, ambient temperature and target service interval. We will return a concise belt family and catalog path.

ISO 5294 geometry check
DesignFlex Pro input review
Replacement path for chain or V-belt drives

Send belt drive requirements

Share pulley diameter, center distance, rpm, ambient temperature and duty cycle. A specification engineer will return a compact selection path.
